uPVC Vinyl
Casement Windows Eclipse UltraRange

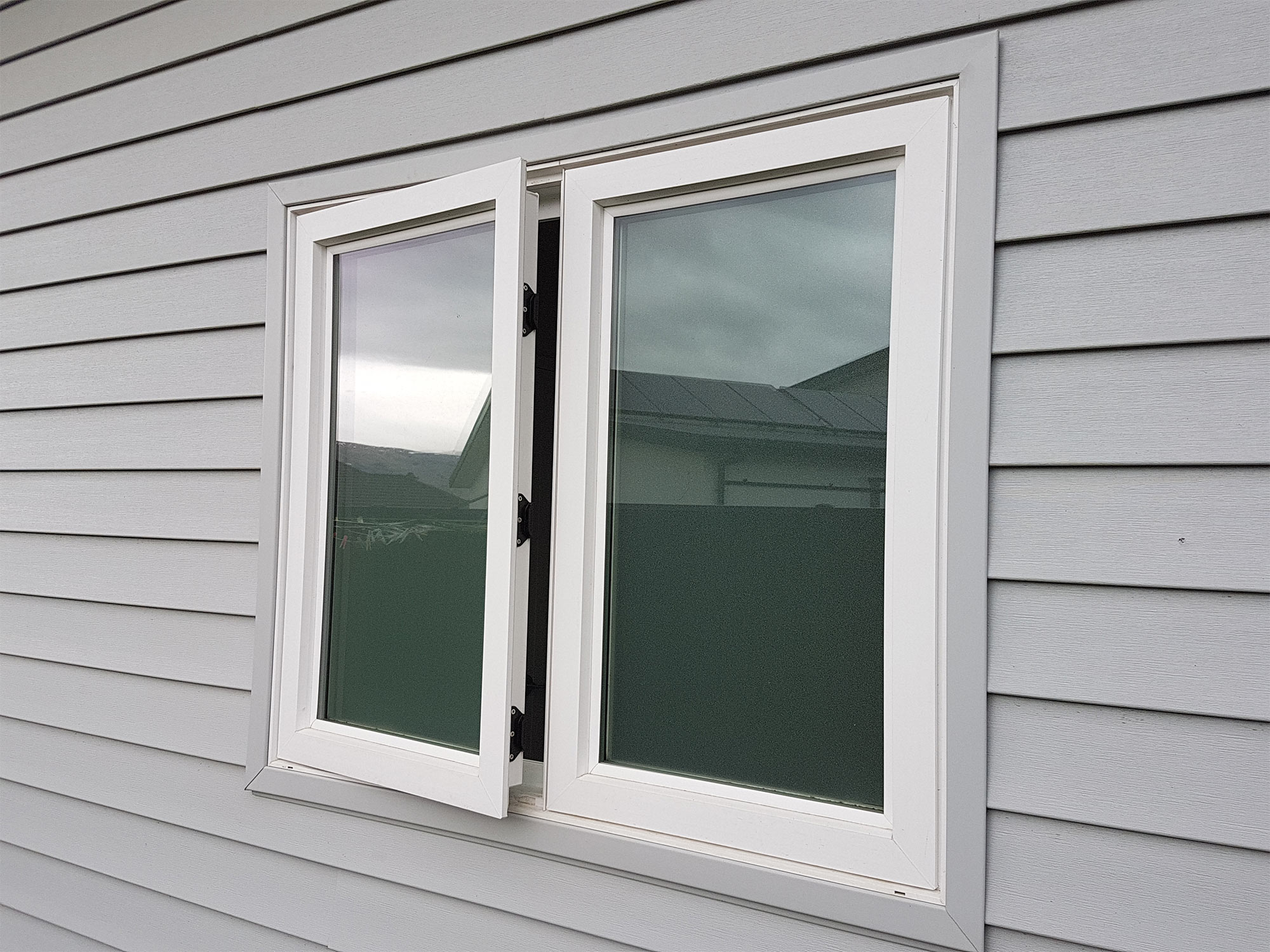

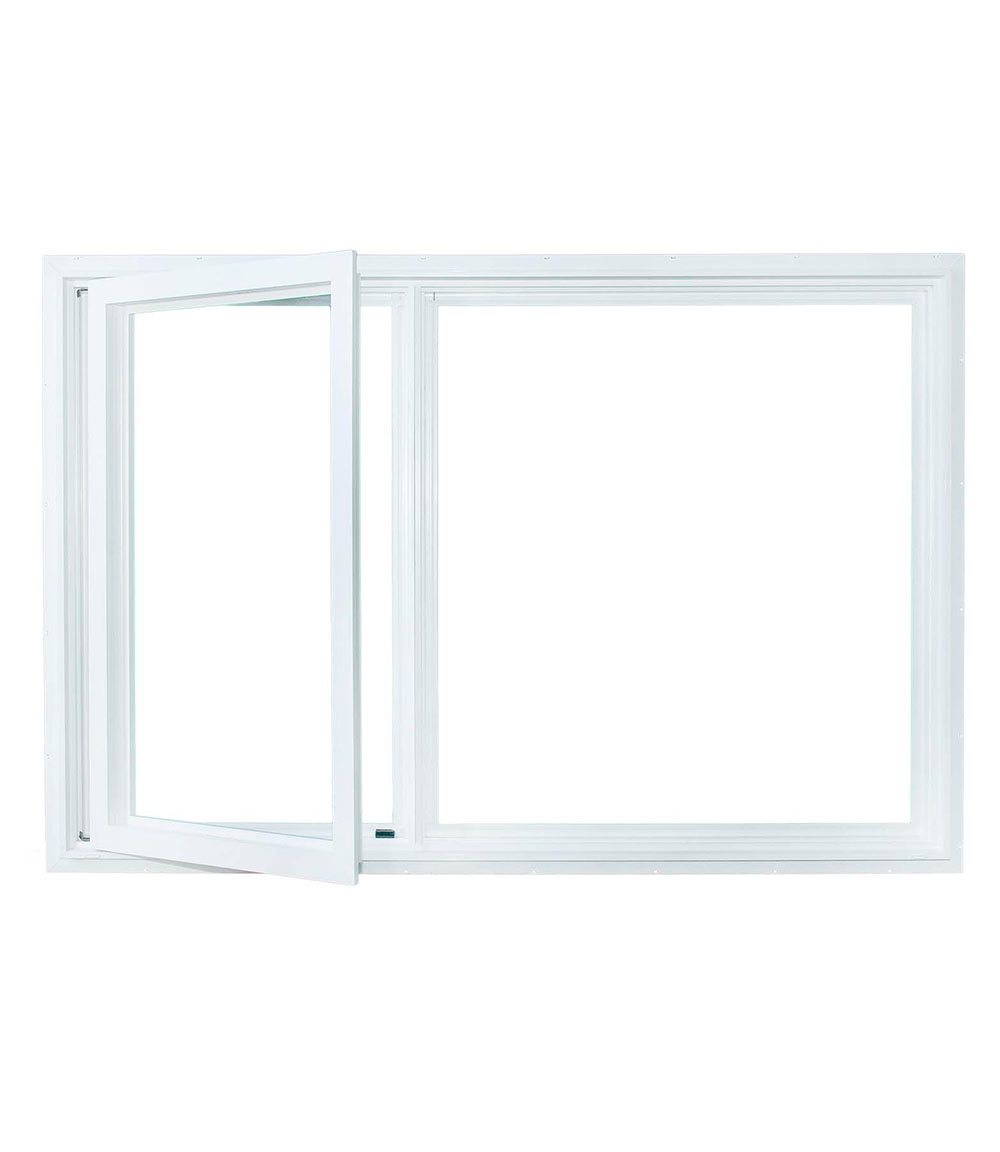

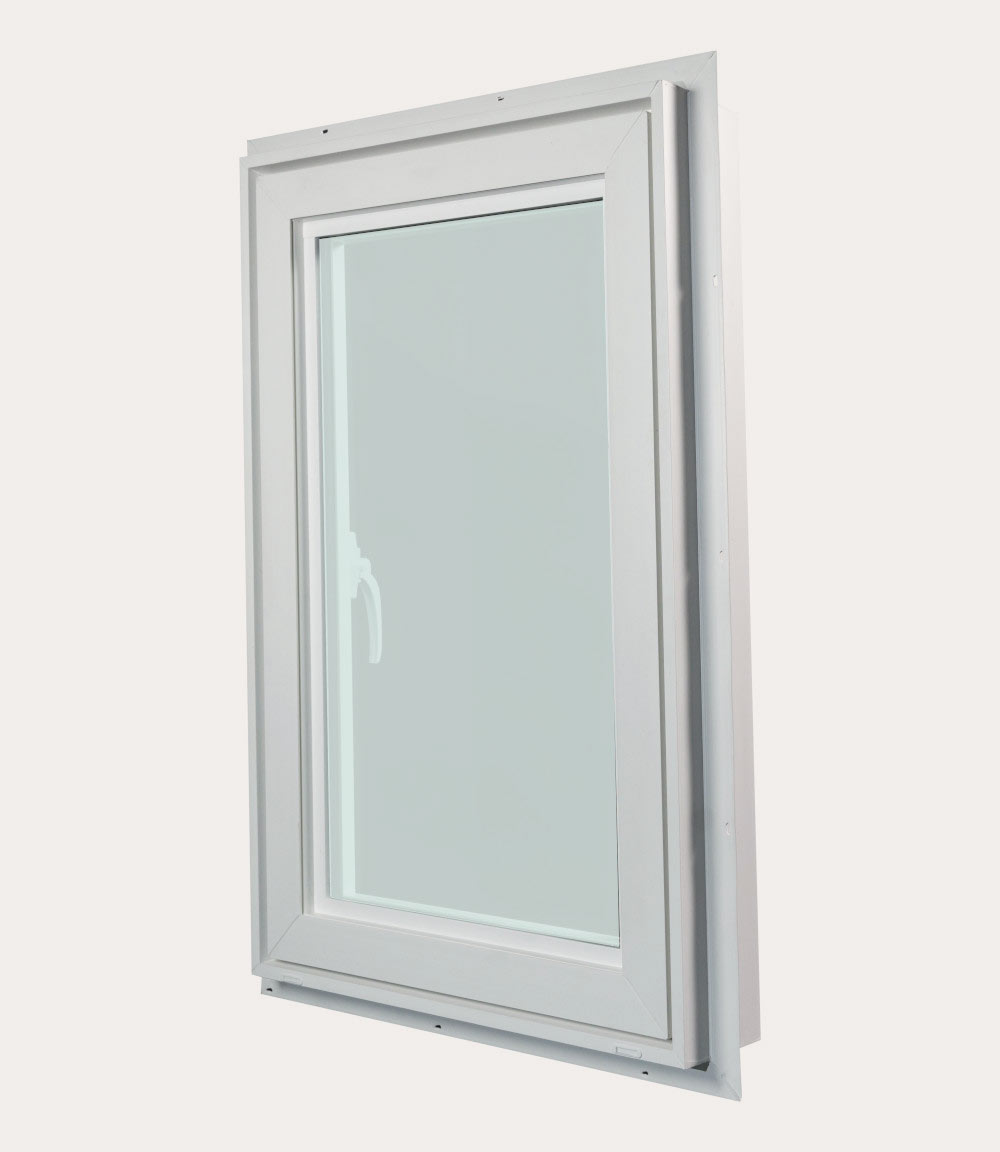

Ultra Series casement windows perfectly complement the simplicity of modern design. This type of window is hinged on either side so that the sash opens outward, to the right or left, in a swinging motion. Operation types include crank-out and cam handle simple push-out.

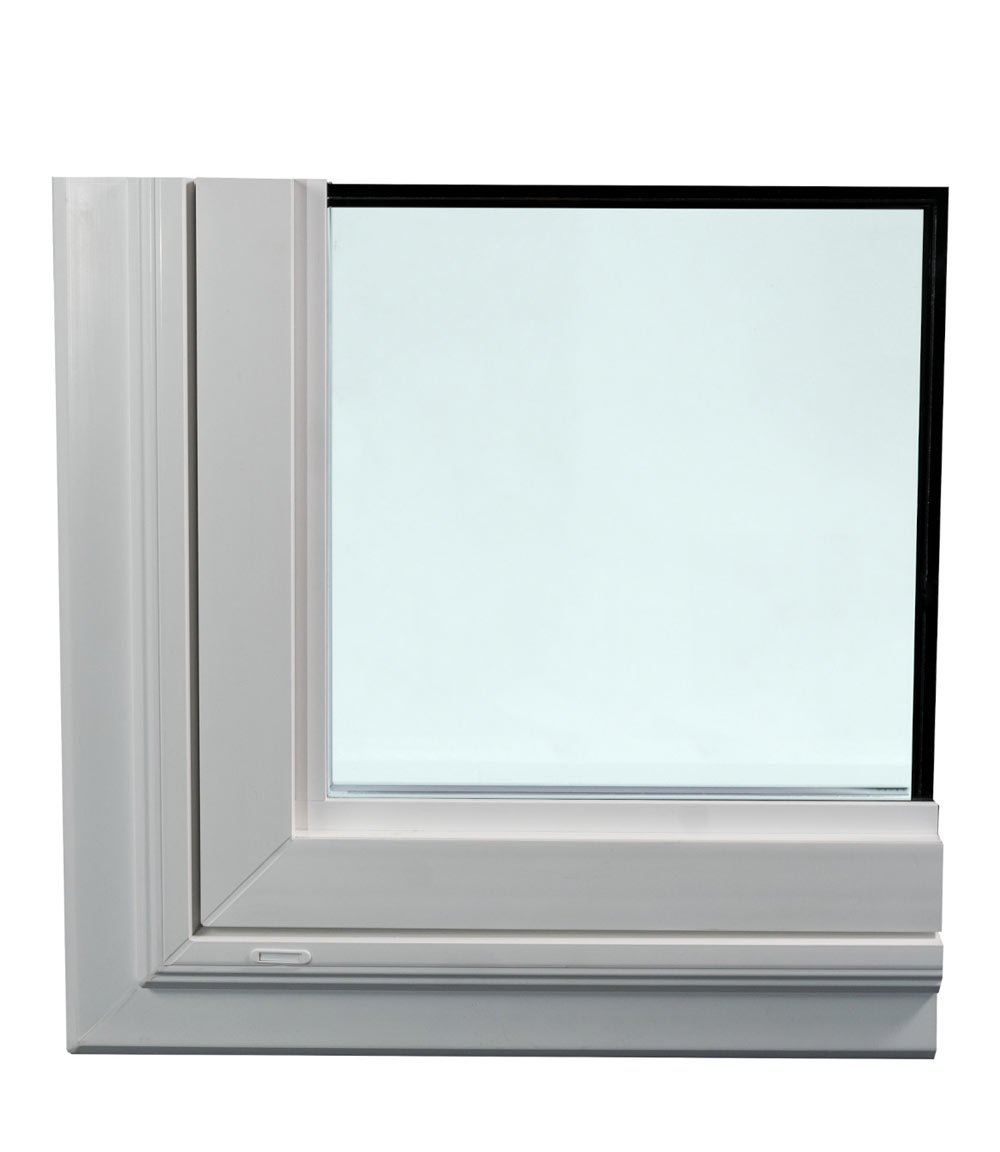

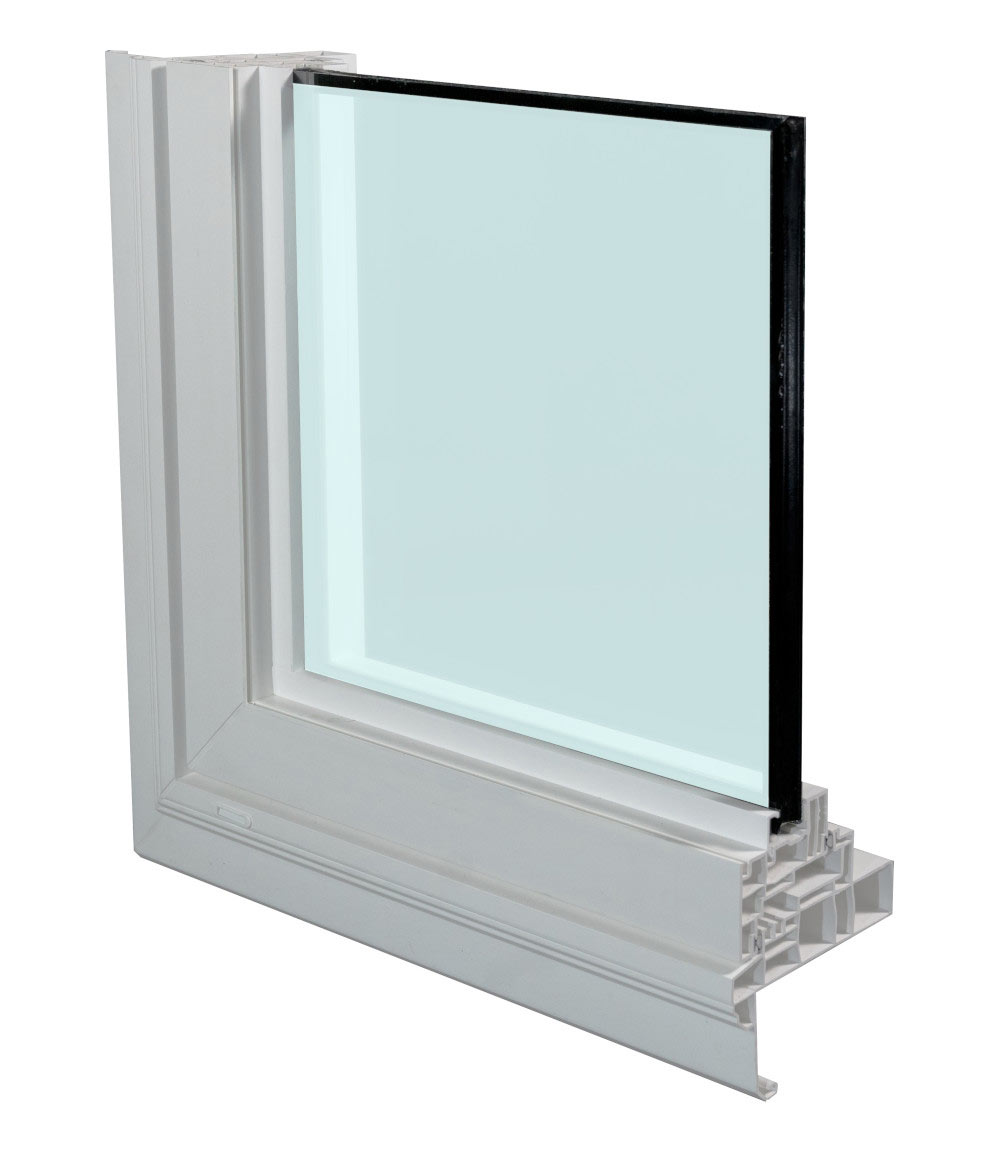

- Multi-chamber frames and sashes with fusion-welded corners
- Heavy duty hinges ensure trouble free operation
- Dual weatherstripping ensures a tight seal against drafts to help reduce heating costs and outdoor noise
- Double Glazed 3/4” and Triple Glazed 1-3/8” overall thickness
- Metal reinforced mullion available
- Easily removable bug screens from inside
- Tested to NAFS and QAI certified for Energy Performance
- Energy Star certified
Colours Available
Colours only a screen representation. Exterior colour only, white interior.
Choose from a standard pallet or go for true custom match to suit your style. Our water borne pvc paint is engineered to permanently bond to the frame providing lasting durability and colour fastness.
Performance
NAFS-17 and CSA A440S1-19
- Performance Class/Grade: LC PG25
- Air Infiltration/Exfiltration: A3
- Water Penetration Resistance: 360 Pascal (7.5psf)
- Positive Design Pressure: 1200 Pascal (25psf)
- Negative Design Pressure: -1200 Pascal (-25psf)
Energy Performance CSA A440.2-19
- U value: 0.98 to 1.51 W/m2-K
- Solar Heat Gain Coefficient (SHGC): 0.16 to 0.43
- Energy Rating (ER): 18 to 37
- Visual Transmittance (VT): 0.36 to 0.49
- Energy Star Most Energy Efficient 2021: Yes
Flange
- Equal leg
- Integral Nail Flange 1-9/16” set back with pre-punched holes and fusion-welded corners
- Integral Brickmould (renovation flange) with fusion-welded corners
