uPVC Vinyl
Fixed Windows Eclipse UltraRange

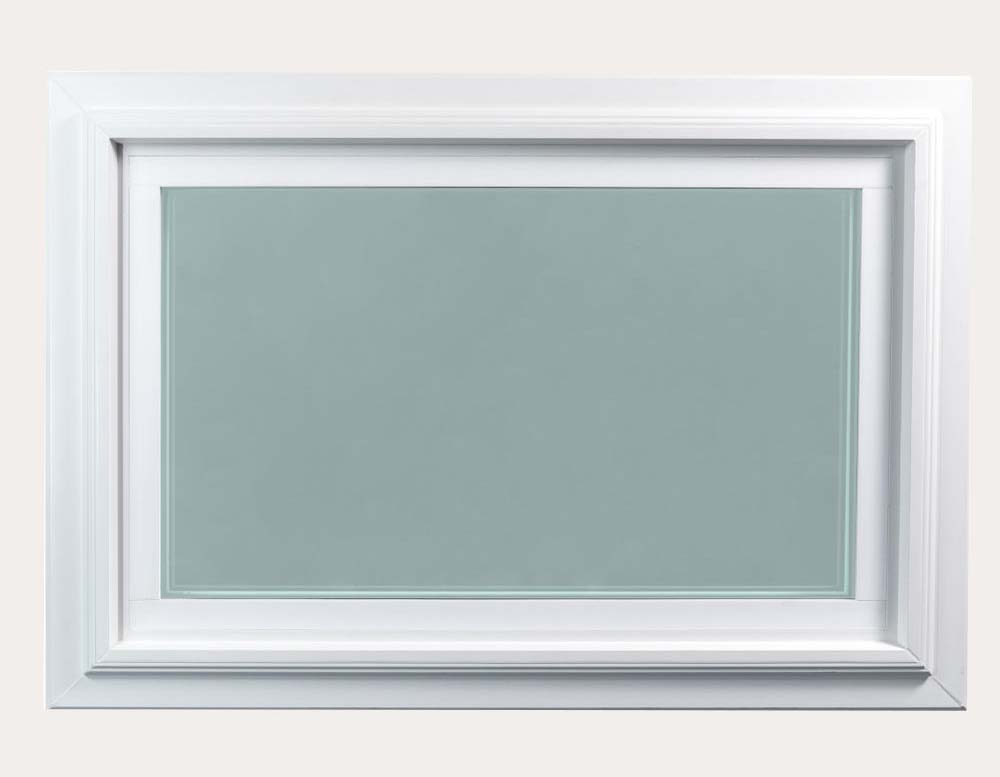

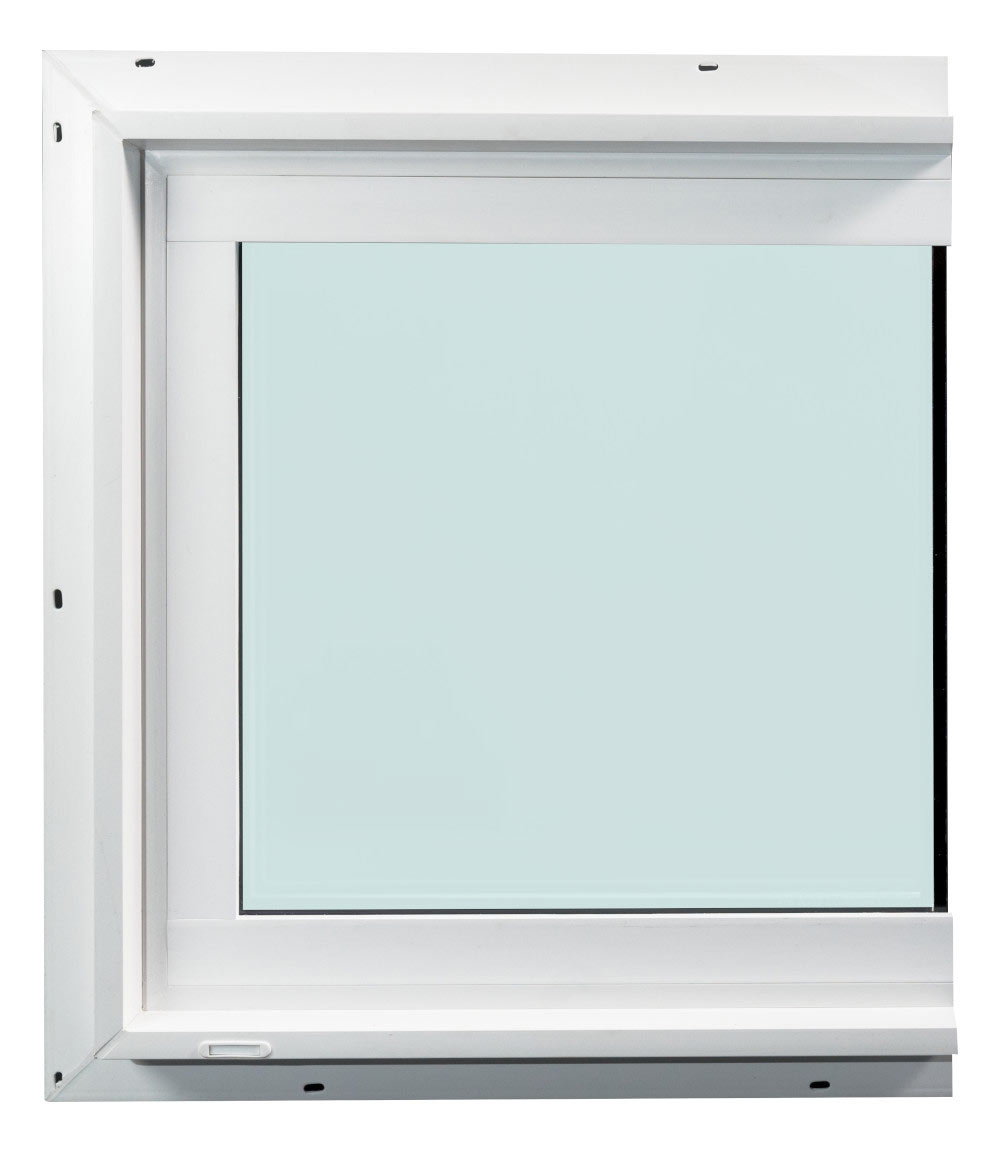

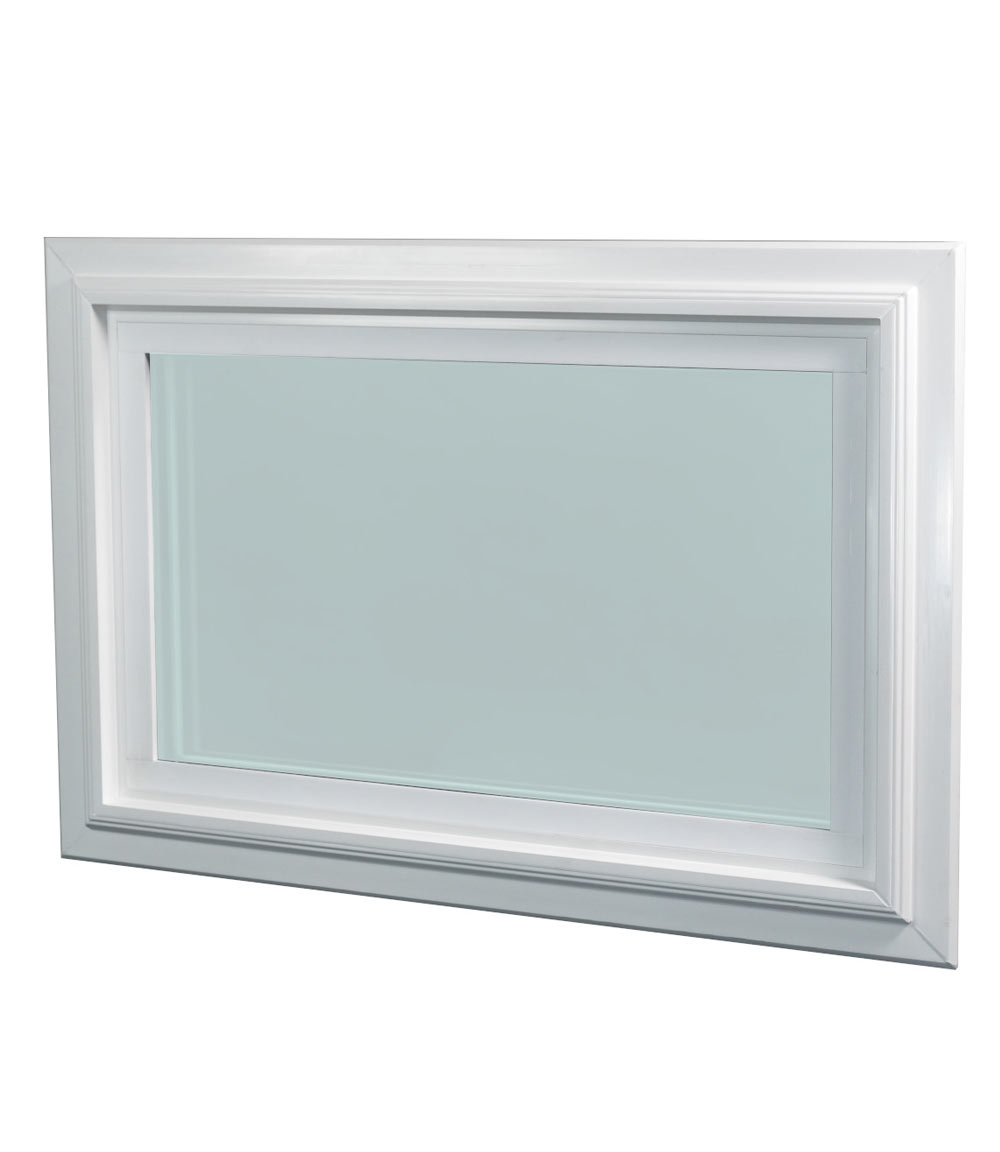

Picture or fixed vinyl windows are the most basic windows we manufacture. Usually, these windows are rectangular shaped and made for the simple function of letting light in. We can craft your windows to your exact specifications. Take your customization a step further by adding our glass and grid options for a highly personalized look.

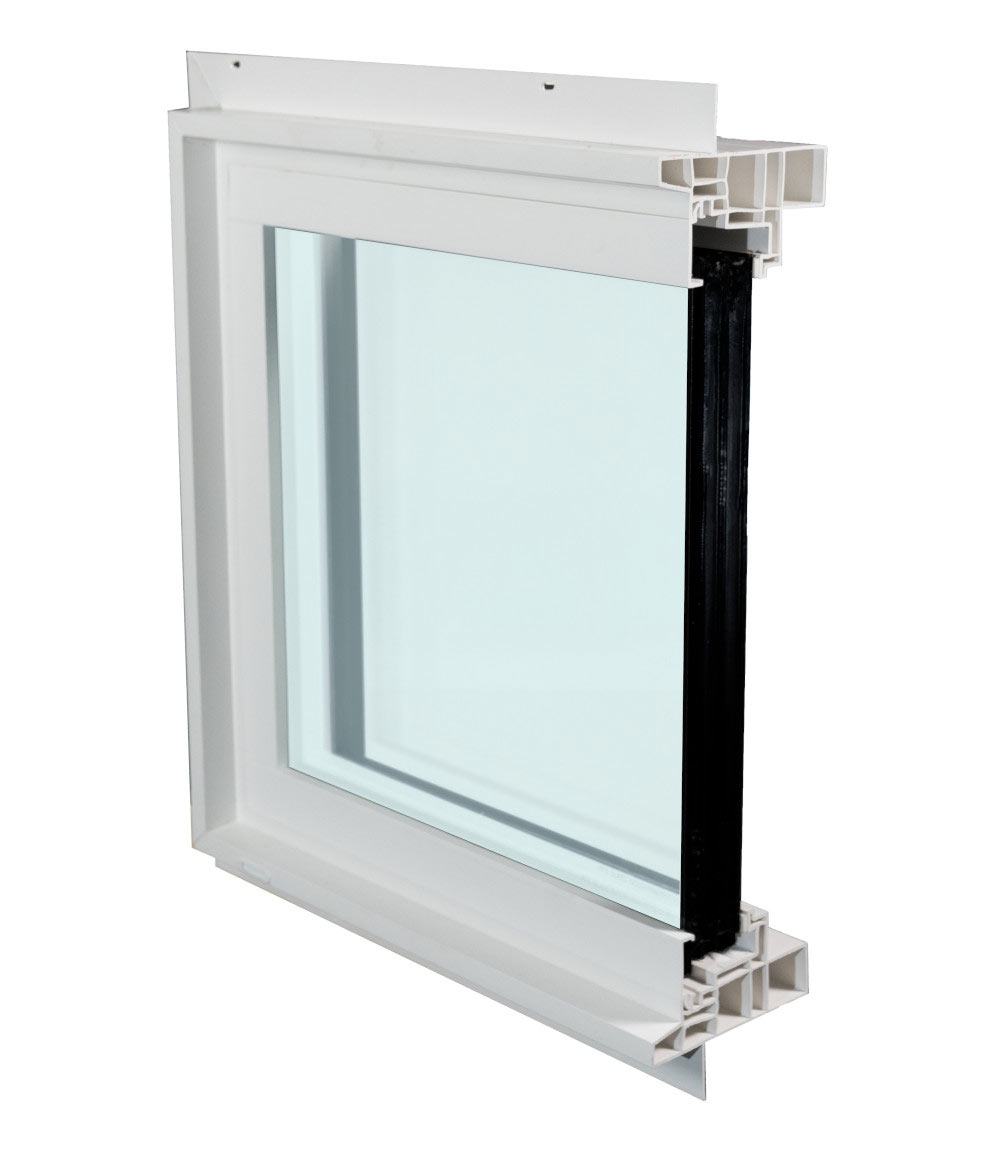

- Multi-chamber frames with fusion-welded corners
- Double Glazed 3/4” and Triple Glazed 1-7/16” overall thickness
- Metal reinforced mullion available
- Tested to NAFS and QAI certified for Energy Performance
- Energy Star certified
Colours Available
Colours only a screen representation. Exterior colour only, white interior.
Choose from a standard pallet or go for true custom match to suit your style. Our water borne pvc paint is engineered to permanently bond to the frame providing lasting durability and colour fastness.
Performance
NAFS-17 and CSA A440S1-19
- Performance Class/Grade: LC PG25
- Air Infiltration/Exfiltration: Fixed
- Water Penetration Resistance: 360 Pascal (7.5psf)
- Positive Design Pressure: 1200 Pascal (25psf)
- Negative Design Pressure: -1200 Pascal (-25psf)
Energy Performance CSA A440.2-19
- U value: 0.88 to 1.73 W/m2-K
- Solar Heat Gain Coefficient (SHGC): 0.21 to 0.56
- Energy Rating (ER): 17 to 44
- Visual Transmittance (VT): 0.46 to 0.65
- Energy Star Most Energy Efficient 2021: Yes
Flange
- Equal leg
- Integral Nail Flange 1-9/16” set back with pre-punched holes and fusion-welded corners
- Integral Brickmould (renovation flange) with fusion-welded corners
