uPVC Vinyl Vertical
Sliding Windows Eclipse UltraRange

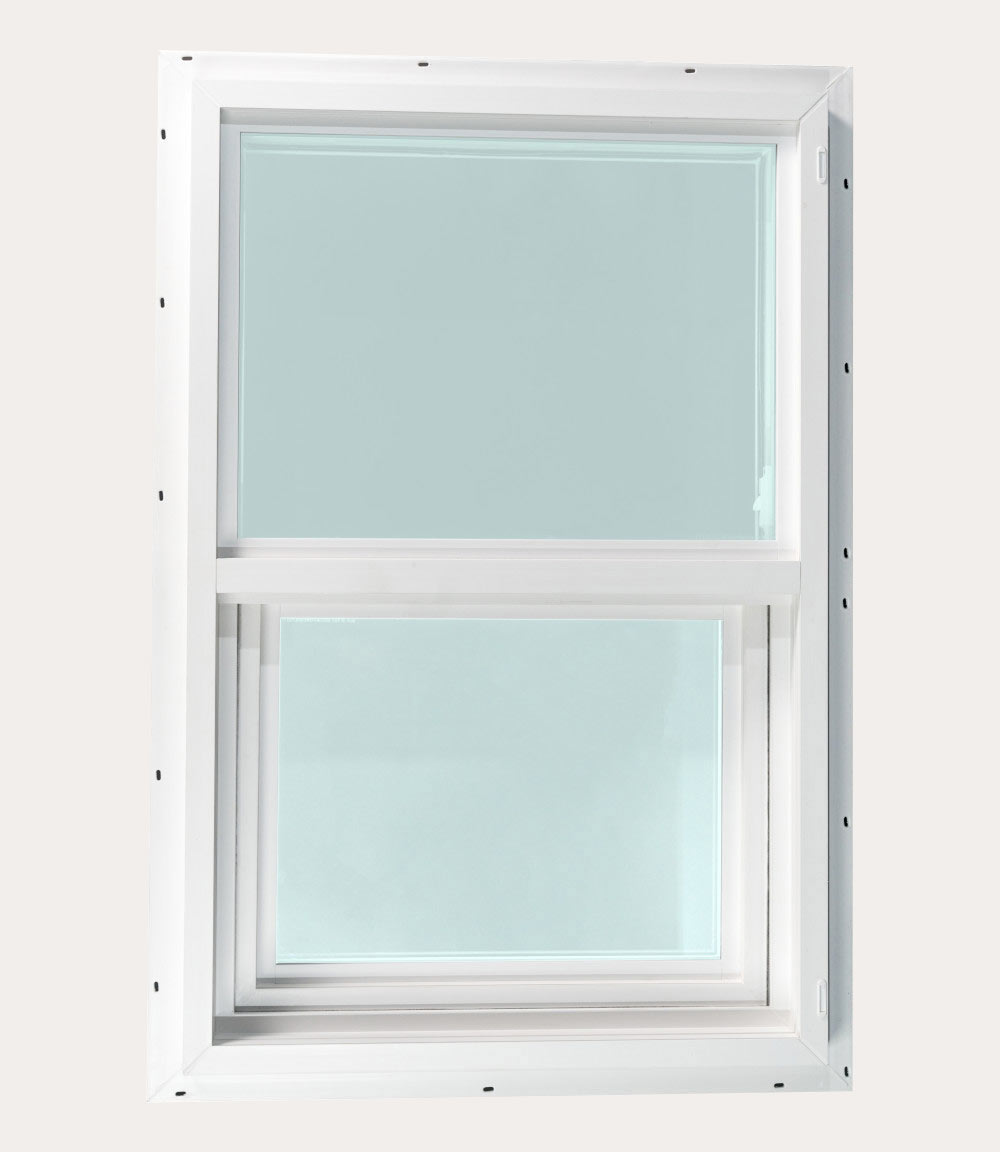

Vertical Sliding Window / Single Hung Windows open vertically without consuming much space. They are great options when exterior space is a concern. Spring balances at either side of the lower sash allow for smooth operation up and down. In Single hung windows only the lower portions move, meaning that the top pane of glass can be larger allowing more natural light to be captured. Single Hung windows are extremely popular because they are easy to operate and are affordable.
Why Choose a Vinyl Slider
- Large opening – roughly 50% – maximizing the view
- Increased ventilation
- Great for bedrooms – ease of meeting egress requirements
- Simple operation combined with durable hardware
- Sliding sash can be easily removed to clean exterior glass from inside your home
Features

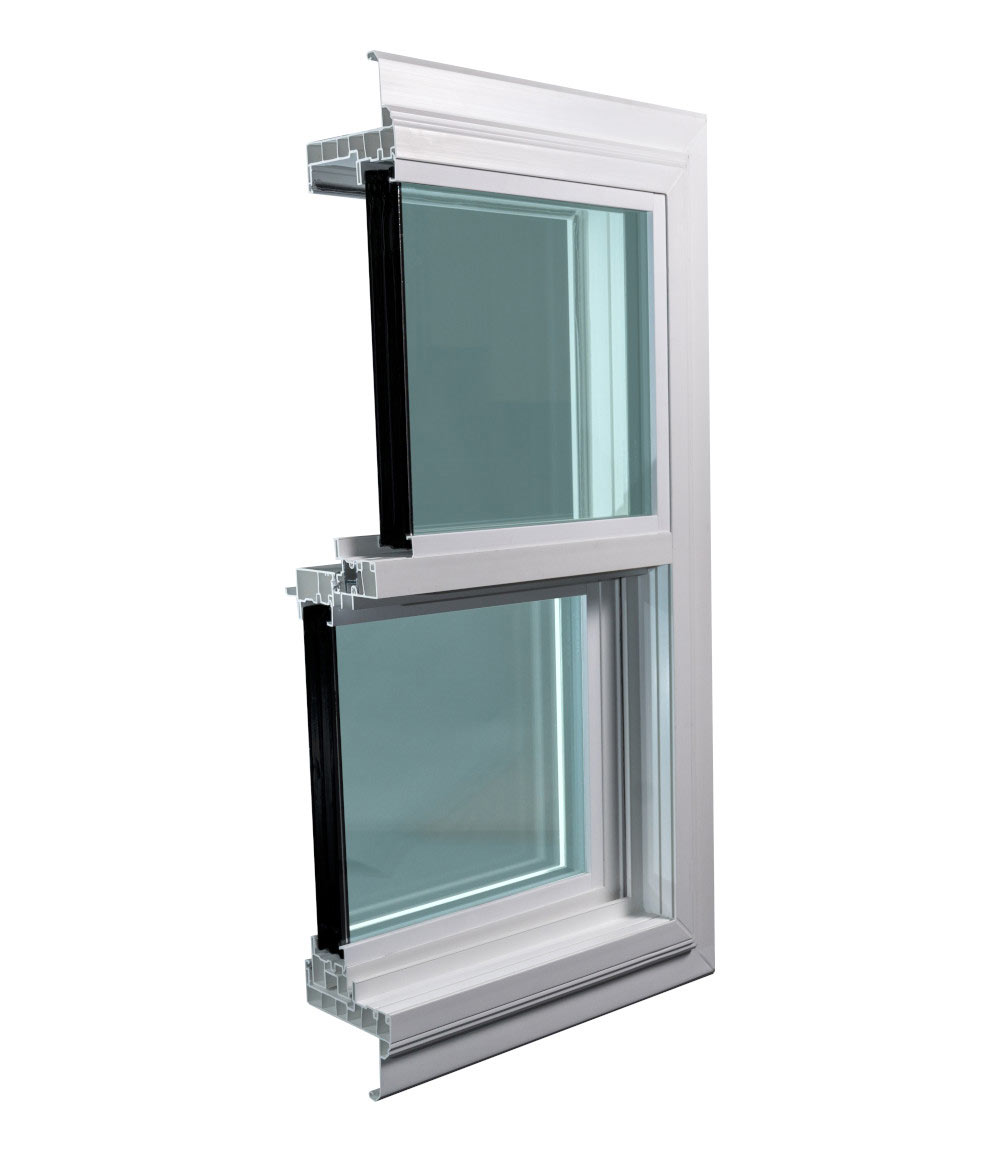

- Multi-chamber frames and sashes with fusion-welded corners
- Dual weatherstripping ensures a tight seal against drafts to help reduce heating costs and outdoor noise
- Double Glazed 3/4” and Triple Glazed 1-3/8” overall thickness
- Metal reinforced mullion
- Constant tension balance for smooth, even and uniform load through entire length or travel
- Easily removable bug screens from inside or outside
- Tested to NAFS and QAI certified for Energy Performance
- Energy Star certified
Colours Available
Colours only a screen representation. Exterior colour only, white interior.
Choose from a standard pallet or go for true custom match to suit your style. Our water borne pvc paint is engineered to permanently bond to the frame providing lasting durability and colour fastness.
Performance
NAFS-17 and CSA A440S1-19
- Performance Class/Grade: LC PG30
- Air Infiltration/Exfiltration: A3
- Water Penetration Resistance: 510 Pascal (10.5psf)
- Positive Design Pressure: 1440 Pascal (30psf)
- Negative Design Pressure: -1440 Pascal (-30psf)
Energy Performance CSA A440.2-19
- U value: 1.00 to 1.67 W/m2-K
- Solar Heat Gain Coefficient (SHGC): 0.20 to 0.53
- Energy Rating (ER): 18 to 40
- Visual Transmittance (VT): 0.45 to 0.62
- Energy Star Most Energy Efficient 2021: Yes
Flange
- Equal leg
- Deflection head channel to accommodate inter-storey drift
- Compensating jamb channel to accommodate seismic movement
